Change and Configure Solvers
MPIReco uses RegularizedLeastSquares.jl as its optimization backend. As such it can use any of the solvers and regularization terms defined for and in RegularizedLeastSquares.
In general, RegularizedLeastSquares aims to solve problems of the form:
\[\begin{equation} \underset{\mathbf{c}}{argmin} \frac{1}{2}\vert\vert \mathbf{S}\mathbf{c}-\mathbf{u} \vert\vert_2^2 + + \mathbf{R(x)} \end{equation}\]
where $\mathbf{S}$ is a system matrix operator and $\mathbf{u}$ is the measurement vector. Both are provided by MPIReco and constructed based on the specific parameters and processing steps of a given reconstruction algorithm. The (optional) regularization term $\mathbf{R(x)}$ can be used to encode additional prior information about the inverse problem. Different solvers of RegularizedLeastSquares can work with different regularization terms. For example, the Kaczmarz and CGNR solver are defined for the $l^2_2$-norm. More information on available solvers and regularization terms can be found RegularizedLeastSquares documentation.
Solver and Solver Parameters
MPIReco offers different ways to configure the used solvers, similar to how it for example offers different weighting strategies. If we take a look at the default solver parameters from the single-patch reconstruction:
plan = MPIRecoPlan("SinglePatch")
solverParams = plan.parameter.reco.solverParamsRecoPlan{ElaborateSolverParameters}
├─ solver
├─ iterations
├─ enforceReal
├─ enforcePositive
├─ callbacks
├─ normalizeReg
├─ randomized
├─ subMatrixFraction
├─ shuffleRows
├─ seed
├─ greedy_randomized
└─ theta
We see that the default parameters are of type ElaborateSolverParameters. These are a special set of parameters, because they contain the union of all solver parameters defined in RegularizedLeastSquares. The current selection of parameters changes based on the selected solver:
solverParams.solver = Kaczmarz
solverParamsRecoPlan{ElaborateSolverParameters}
├─ solver = Kaczmarz
├─ iterations
├─ enforceReal
├─ enforcePositive
├─ callbacks
├─ normalizeReg
├─ randomized
├─ subMatrixFraction
├─ shuffleRows
├─ seed
├─ greedy_randomized
└─ theta
or:
solverParams.solver = FISTA
solverParamsRecoPlan{ElaborateSolverParameters}
├─ solver = FISTA
├─ iterations
├─ enforceReal
├─ enforcePositive
├─ callbacks
├─ normalizeReg
├─ rho
├─ theta
├─ relTol
└─ restart
With these parameters we can define both the solver and the solver parameters as defined in RegularizedLeastSquares.
It is also possible to add new solvers, such as variants of existing solver specialised for MPI. To do this, we have to implement a new solver variant for RegularizedLeastSquares. We can either implement a new solver or implement a new variant of a solver via its state:
using MPIReco.RegularizedLeastSquares
mutable struct OurSolver{OP, T} <: RegularizedLeastSquares.AbstractLinearSolver
S::OP
c::Vector{T}
u::Vector{T}
notification::String
end
function OurSolver(S; notification = "Test", kwargs...)
u = zeros(eltype(S), size(S, 1))
c = zeros(eltype(S), size(S, 2))
return OurSolver(S, c, u, notification)
end
function RegularizedLeastSquares.init!(solver::OurSolver{OP, T}, u) where {OP, T}
solver.u .= u
solver.c .= zero(T)
end
function Base.iterate(solver::OurSolver)
@info solver.notification
solver.c .= solver.S \ solver.u
return nothing
end
RegularizedLeastSquares.solversolution(solver::OurSolver) = solver.cAfterwards, we can just use the solver type as usual:
params = Dict{Symbol, Any}()
params[:SNRThresh] = 5
params[:frames] = 1:1
params[:minFreq] = 80e3
params[:recChannels] = 1:2
params[:spectralLeakageCorrection] = true
params[:sf] = bSF;
c = reconstruct("SinglePatch", b; params..., solver = OurSolver)

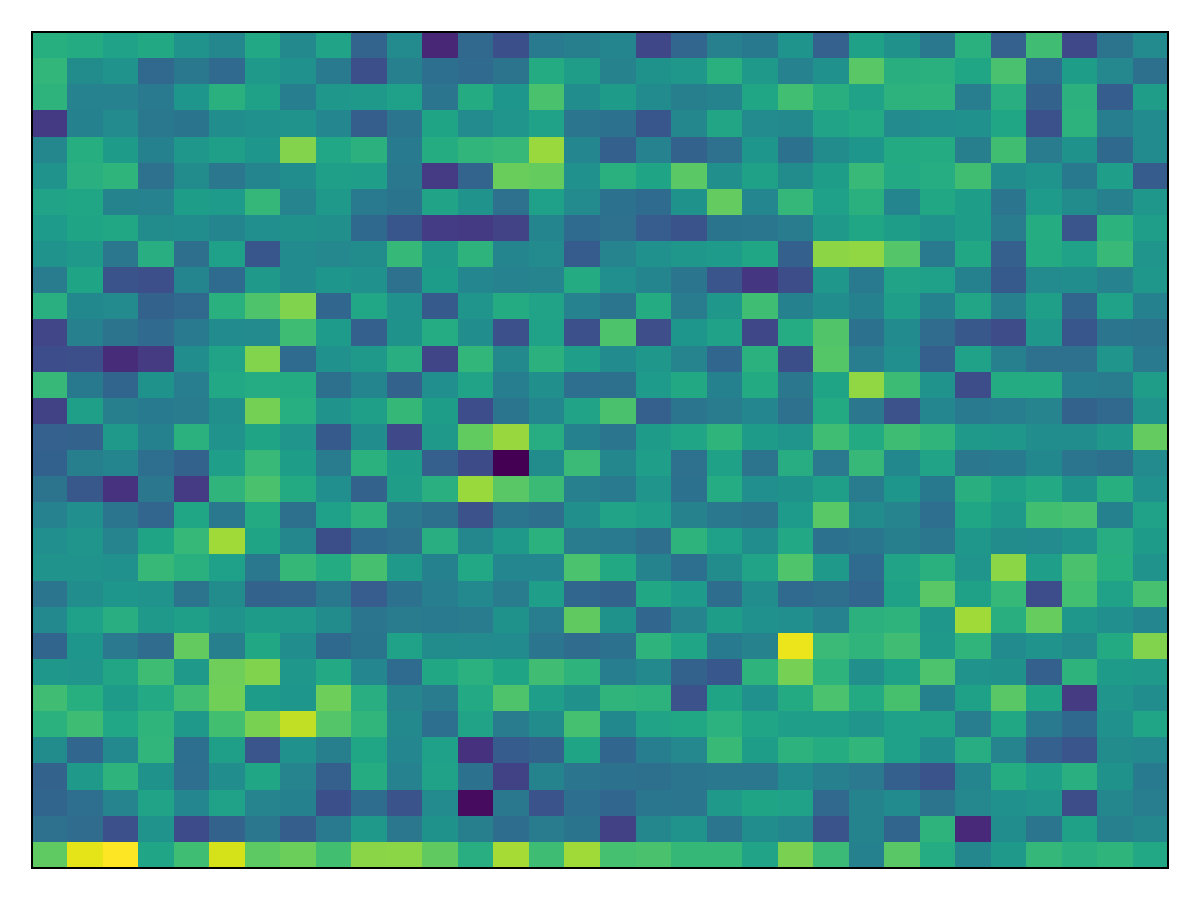

fig = heatmap(c[1, :, :, 1, 1].data.data)
hidedecorations!(fig.axis)
fig
If our custom solver requires custom parameters, we could implement custom solver parameters in MPIReco:
Base.@kwdef struct OurSolverParameters <: MPIReco.AbstractSolverParameters{OurSolver}
notification::String
enforceReal::Bool=true
enforcePositive::Bool=true
end
reconstruct("SinglePatch", b; params..., solverParams = OurSolverParameters(notification = "Custom"));[ Info: Loading SM
[ Info: Preparing SF
[ Info: Adapting SF
┌ Warning: The following arguments were passed but filtered out: reg. Please watch closely if this introduces unexpexted behaviour in your code.
└ @ RegularizedLeastSquares ~/.julia/packages/RegularizedLeastSquares/O9cnL/src/RegularizedLeastSquares.jl:273
[ Info: CustomMore on custom parameters for MPIReco can be found in Custom Data Processing and Algorithms.
Regularization Term
RegularizedLeastSquares allows for the generartion of flexible regularization using a vector of (nested) regularization terms. By providing such a vector, we can configure the regularization term similar to the solver:
setAll!(plan, :reg, [L2Regularization(0.1)])Because MPI oftens constrain its solutions to positive, real numbers, MPIReco offers some shortcurts to enable/disable these constraints:
setAll!(plan, :enforceReal, true)Internally, these are just additional regularization terms added to the provided regularization terms. For more complex regularization examples, take a look at the RegularizedLeastSquares documentation.
To implement a custom regularization we have to implement a proximal mapping:
\[\begin{equation} prox_g (\mathbf{x}) = \underset{\mathbf{u}}{argmin} \frac{1}{2}\vert\vert \mathbf{u}-\mathbf{x} \vert {\vert}^2 + g(\mathbf{x}). \end{equation}\]
For many regularizers, the proximal map can be computed efficiently in a closed form.
In order to implement these proximal mappings, we have to defines the following type functions for our new proximal map:
abstract type AbstractRegularization
prox!(reg::AbstractRegularization, x)
norm(reg::AbstractRegularization, x)Here prox!(reg, x) is an in-place function which computes the proximal map on the input-vector x. The function norm computes the value of the corresponding term in the inverse problem. RegularizedLeastSquares.jl provides AbstractParameterizedRegularization and AbstractProjectionRegularization as core regularization types.
