Enable Caching

Image reconstructions implemented with AbstractImageReconstruction.jl are composed of several individual processing steps which form the whole (computationally expensive) image recosntruction procses. Often time one wants to slightly modify reconstruction parameters, for example when searching for good regularization parameters. AbstractImageReconstruction.jl offers a caching option in which algorithms can reuse intermediate processing results, as long as those are unaffected by the parameter changes.

This caching mechanism has to be explicitly added in the implementation of an algorithm and an algorithms RecoPlan. All algorithms constructed from the same plan, can access the same cache. To make this behaviour available to the high-level reconstruct interface, MPIReco can cache RecoPlans between reconstructions:

bSF = MPIFile(joinpath(datadir, "calibrations", "12.mdf"))
b = MPIFile(joinpath(datadir, "measurements", "20211226_203916_MultiPatch", "1.mdf"))
params = Dict{Symbol, Any}()
params[:SNRThresh] = 5
params[:frames] = 1:1
params[:minFreq] = 80e3
params[:recChannels] = 1:2
params[:spectralLeakageCorrection] = true
params[:sf] = bSF
params[:reg] = [L2Regularization(0.1f0)];

Caching is disabled by default and if you modify the blueprint of a plan, for example by providing a different weighting strategy. To opt into caching you call a reconstruction with a true flag as the third argument:

initial = @elapsed reconstruct("SinglePatch", b, true; params...)
second = @elapsed reconstruct("SinglePatch", b, true; params...)
initial/second # speedup

5425.549629296169

Changing a parameter which affects the cache result, in this case the loading of the system matrix, invalidates the cache:

third = @elapsed reconstruct("SinglePatch", b, true; params..., SNRThresh = 2)
initial/third

1538.9638927732751

It is possible to manually empty the MPIRecos cache of blueprints and thus release any large cached results:

emptyRecoCache!();

The number of cached reconstruction plans can be set via the MPIRECO_CACHE_SIZE environment variable. Note that restarting is necessary for it to take any effect.

When directly constructing a plan, all algorithms build from it can benefit from the plans caching:

plan = MPIRecoPlan("SinglePatch")
setAll!(plan, params)
results = []
for λ in [0.1f0, 0.5f0, 1.0f0]
  setAll!(plan, :reg, [L2Regularization(λ)])
  c = reconstruct(build(plan), b)
  push!(results, c[1, :, :, 1, 1].data)
end

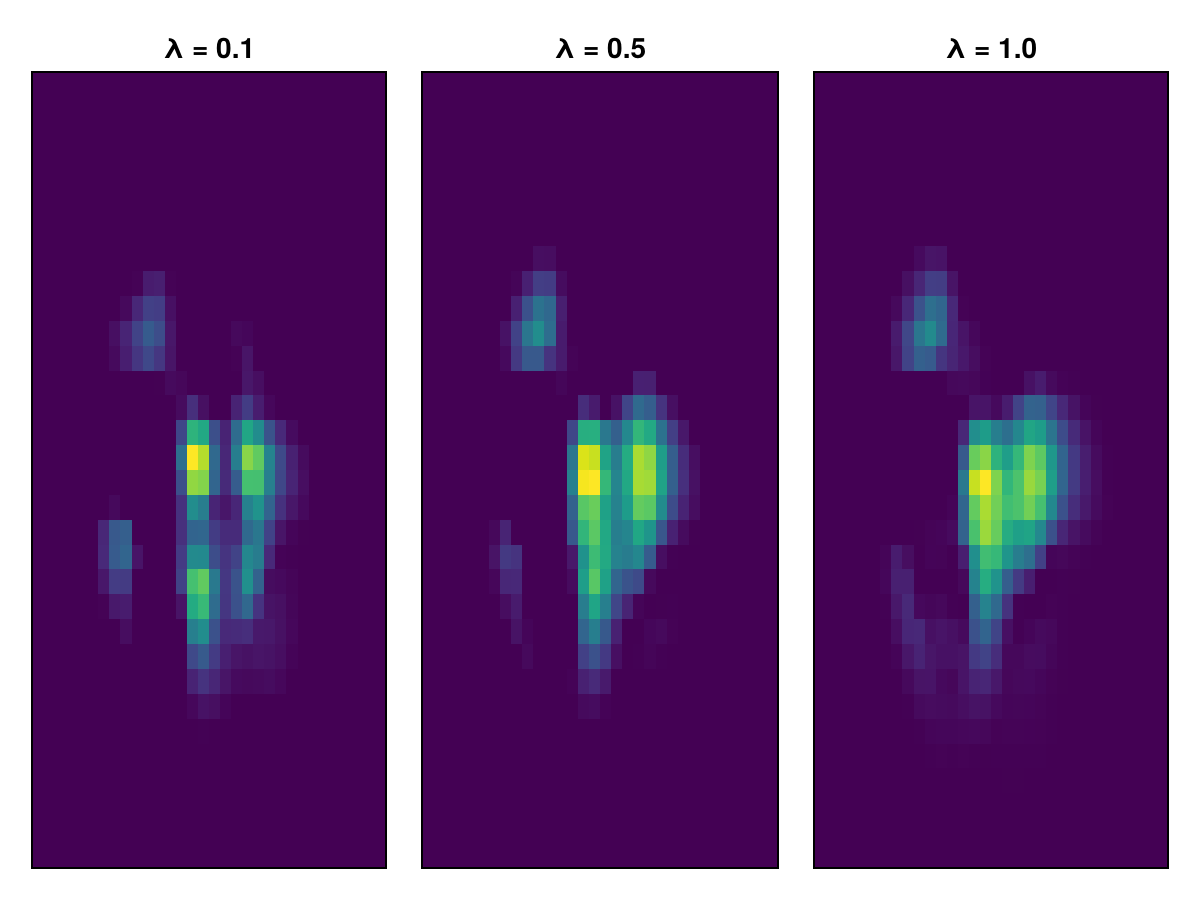

fig = Figure();
hidedecorations!(heatmap(fig[1, 1], results[1], axis = (title = "λ = 0.1",)).axis)
hidedecorations!(heatmap(fig[1, 2], results[2], axis = (title = "λ = 0.5",)).axis)
hidedecorations!(heatmap(fig[1, 3], results[3], axis = (title = "λ = 1.0",)).axis)
fig

This type of caching bypasses MPIRecos cache and results are only freed if there is no reference to the plan available anymore:

plan = nothing
